TESCON SANAPATCH
Installation steps
1. Principle
Fold over the release film so that it protrudes on the back of the patch. The release film will be touching the release film here on the rear.
1. Principle
Fold over the release film so that it protrudes on the back of the patch. The release film will be touching the release film here on the rear.
2. Preparation of the patch
For installation in corner situations, create slits on the release film up to the patch itself using a cutter to suit the fold geometry.
Once the release film is removed later, the slits are automatically continued in the area of the patch.
2. Preparation of the patch
For installation in corner situations, create slits on the release film up to the patch itself using a cutter to suit the fold geometry.
Once the release film is removed later, the slits are automatically continued in the area of the patch.
3. Position the patch
Clean and prepare the subsurface. Fold TESCON SANAPATCH, place it in the space to be stuck and align it.
3. Position the patch
Clean and prepare the subsurface. Fold TESCON SANAPATCH, place it in the space to be stuck and align it.
4. Initial attachment of the patch
Pull back the release film a little, initially attach a few millimetres of the patch to the subsurface on the outside and press into place.
4. Initial attachment of the patch
Pull back the release film a little, initially attach a few millimetres of the patch to the subsurface on the outside and press into place.

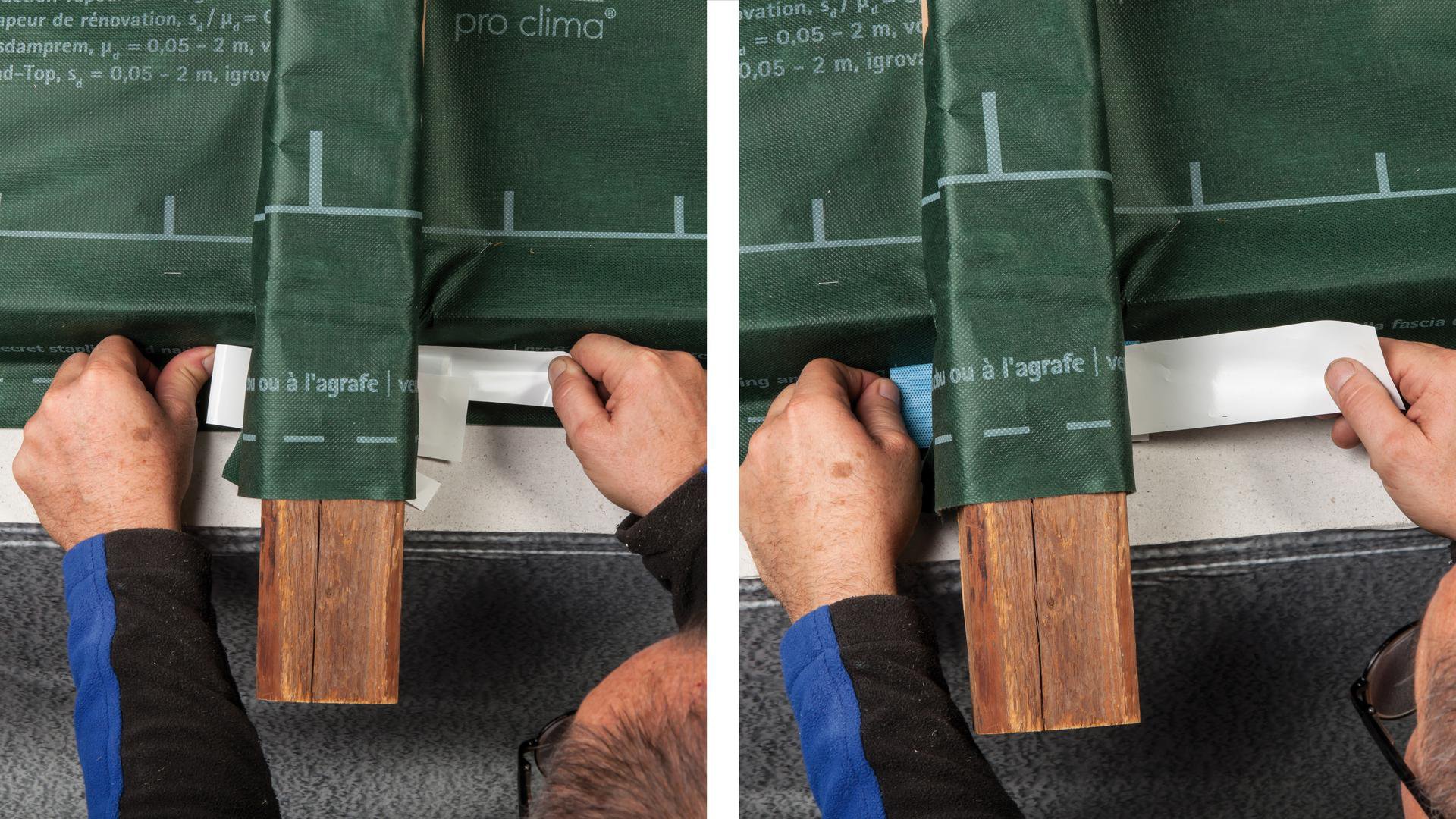

5. Remove the release films
Hold the patch in place with one hand. At the same time, remove the protruding part of one of the release films with the other hand.
5. Remove the release films
Hold the patch in place with one hand. At the same time, remove the protruding part of one of the release films with the other hand.
6. Press into place
Rub TESCON SANAPATCH firmly into place using the pro clima PRESSFIX application tool or by hand.
6. Press into place
Rub TESCON SANAPATCH firmly into place using the pro clima PRESSFIX application tool or by hand.
