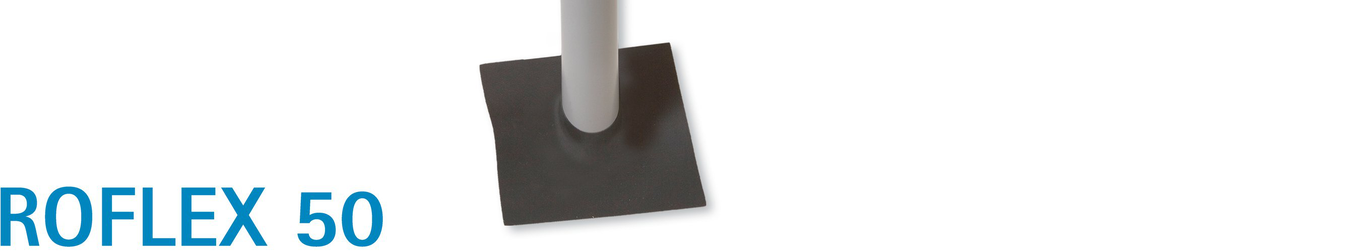

Sealing grommets for pipes Ø 50 - 90 mm (2.0”-3.5”)



Advantages

  • Secure bond, quick and secure sealing, indoors or out
  • High-quality EPDM, extremely flexible and elastic, no excess bushing
  • Waterproof, also suitable for penetrations in façades and roof linings
  • Pipes can be still be pulled or pushed
  • Excellent values in the hazardous substance test, has been tested according to the ISO 16000 evaluation scheme


Application

Sealing grommet made of strong and highly flexible EPDM. Ideally suited for rapid and permanent airtight feedthroughs for pipes through the airtight sealing layer.
Can also be used outdoors, e.g. for sub-roofs and for refurbishment vapour check.
Stick with TESCON VANA (included in the double packaging unit).

Technical specs

Attribute Value Norm
Colour black
Exposure time 6 months
Application temperature above -10 °C ; 14 °F
Temperature resistance permanent -40 °C to 150 °C ; -40 °F to 302 °F
Storage cool and dry

General conditions

The bonds should not be subjected to tensile strain.
Press firmly to secure the adhesive tapes in place. Ensure that there is sufficient resistance pressure.
Windproof, airtight or rainproof bonding can only be achieved on vapour retarders or underlay/sarking/facade membranes that have been laid without folds or creases.
Ventilate continuously and systematically to prevent build-up of excessive humidity; use a dryer if necessary.

Substrate

Before adhesion is carried out, subsurfaces should be brushed off, wiped clean with a cloth or cleaned using compressed air.
Adhesion to frozen surfaces is not possible. There must be no water-repellent substances (e.g. grease or silicone) on materials to be bonded. Subsurfaces must be sufficiently dry and stable.

Permanent adhesion is achieved on all pro clima interior and exterior membranes, other vapour retarder and airtight membranes (e.g. those made of PE, PA, PP and aluminium) as well as other underlay/sarking and wall lining membranes (e.g. those made of PP and PET).
Bonding and joints are possible on planed and painted wood, hard plastics and metal (e.g. pipes, windows etc.), hard wood-based panels (chipboard, OSB, plywood, MDF and wood fibre underlay panels).
Pretreatment with TESCON PRIMER is required in the case of adhesion to wood-fibre underlay panels and smooth mineral subsurfaces. Concrete or plaster subsurfaces must not be sandy or crumbling.

The best results in terms of structural stability are achieved on high-quality subsurfaces.
It is your responsibility to check the suitability of the subsurface; adhesion tests are recommended in certain cases.
Pretreatment with TESCON PRIMER is recommended in the case of subsurfaces with insufficient stability.
