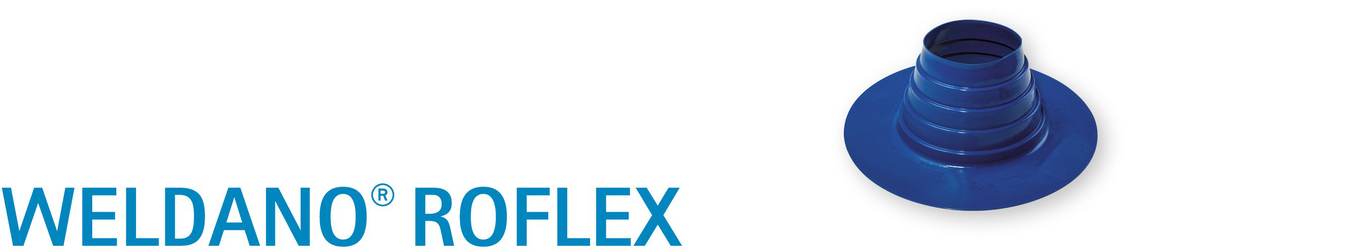

Homogeneously weldable pipe grommet in the SOLITEX WELDANO roof lining system



  • Ho­mo­gen­eously weld­able in the SOLI­TEX WELDANO sys­tem with a welding liquid or with heat
  • The pipes can be shifted or pulled subsequently without damaging the seal
  • Extremely high tear-resistance
  • Windproof, rainproof and watertight
  • For pipes with diameters of 90 - 125 mm (3.5" - 5")


For reliable installation of pipe feed-throughs within the SOLITEX WELDANO system. Suitable for roof pitches between 5° and 25°. The prefabricated grommet can be used to execute pipe feed-throughs in an easy, quick and permanently sealed manner.
The shaped element can be welded to the pro clima SOLITEX WELDANO roof lining membrane in a watertight manner using the WELDANO TURGA system solvent welding agent or hot air.

Technical specs

Material Polyurethane
Attribute Value Norm
Colour blue
Pipe diameter 90 - 125 mm ; 3.5" - 5"
Exposure time 3 months
Temperature resistance permanent -40 °C to 80 °C ; -40 °F to 176 °F

System warranty

We do not leave you on your own. Read here about how extensive the pro clima system warranty is in the worst-case scenario
