So that pro clima SOLI­TEX FRONTA QUAT­TRO can re­li­ably pro­tect the thermal in­su­la­tion against the ele­ments, it needs to be cor­rectly in­stalled. Find out what you need to con­sider dur­ing the in­stall­a­tion pro­cess here.

Application Guide

The image gallery with the key installation steps.

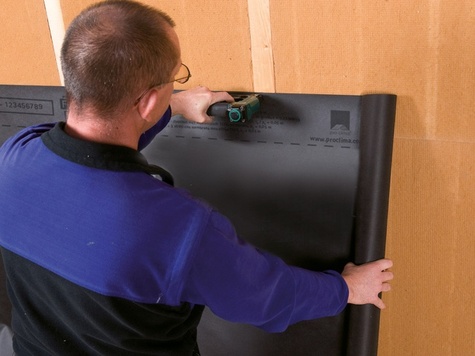

SOLITEX FRONTA QUATTRO membranes must be laid with the printed side facing outwards.
The membranes are to be installed horizontally in a taut manner with no sagging.

  • When using behind open jointed façades the gaps must not be more than 35 mm. The exterior cladding must be at least three times as wide as the gap.
  • The distance between the open jointed façade and the membrane must be at least 20 mm.

The membrane must not be secured in areas where water collectively drains off.

Additional measures during the building phase (e.g. covering with tarpaulin) should be taken in the case of occupied buildings or buildings that need particular protection. Covering with tarpaulin should also be considered in the case of extended interruptions to work.

Further information

The in­form­a­tion provided here is based on prac­tic­al ex­per­i­ence and the cur­rent state of know­ledge. We re­serve the right to make changes to the re­com­mend­a­tions giv­en or to make al­ter­a­tions due to tech­nic­al de­vel­op­ments and as­so­ci­ated im­prove­ments in the qual­ity of our products. We would be happy to in­form you of the cur­rent tech­nic­al state of the art at the time you use our products.

Fur­ther in­form­a­tion about the ap­plic­a­tion and con­struc­tion can be found in the pro clima plan­ning doc­u­ment­a­tion.
