Sealing grommets for pipes, for interior and exterior use

ROFLEX

Advantages

  • Keeps building structures dry: quick and simple sealing
  • Reliable joints thanks to TESCON VANA or TESCON INVIS with water-resistant SOLID adhesive
  • Reliable even in hot environments: stable at temperatures up to 150 °C (300 °F)
  • Practical handling: pipes can be pushed and pulled through the grommet – the joint remains sealed
  • Extremely flexible and elastic, no protruding sleeve
  • Construction in adherence with standards: for airtight sealing in accordance with DIN 4108-7, SIA 180 and RE 2020
  • Excellent values in hazardous substance testing, has been tested according to the ISO 16000 evaluation scheme

Areas of application

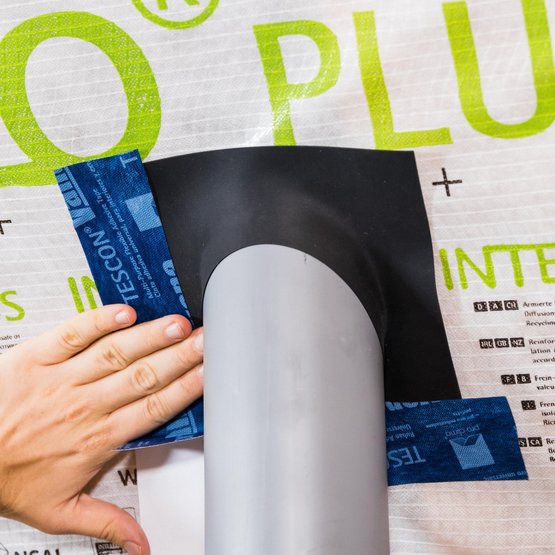

For rapid and permanent airtight feedthroughs for pipes through the airtight sealing layer. Can also be used outdoors, e.g. on roof underlays and for refurbishment vapour control membranes.
Tape with TESCON VANA or TESCON INVIS.

Supply forms

Art. no. GTIN Variant Pipe diameter Length Width Contents Weight
1AR02192 4026639221926 Self-adhesive 15 - 30 mm (1/2”-1 3/16”) 145 mm 145 mm 15 pieces 0.2 kg
1AR04010 4026639240101 Self-adhesive, black 15 - 30 mm (1/2”-1 3/16”) 145 mm 145 mm 15 pieces 0.2 kg
1AR02193 4026639221933 30-50 mm (1 3/16”-2”) 140 mm 140 mm 10 pieces 0.5 kg
1AR02194 4026639221940 50-90 mm (2”-3 1/2”) 140 mm 140 mm 10 pieces 0.4 kg
Art. no. GTIN Variant Pipe diameter Length Width Contents Weight
12936 4026639129369 incl. adhesive tape 15-30 mm (1/2”-1 3/16”); 9x 200 mm 200 mm 2 pieces 0.3 kg
1AR02184 4026639221841 100 - 120 mm (4”-4 3/4”) 200 mm 200 mm 10 pieces 1 kg
1AR02201 4026639222015 120-170 mm (4 3/4”-6 3/4”) 250 mm 250 mm 10 pieces 0.85 kg
1AR02202 4026639222022 170-220 mm (6 3/4”-8 3/4”) 300 mm 300 mm 10 pieces 1 kg
12832 4026639128324 incl. adhesive tape 220-270 mm (8 3/4”-10 1/2”) 450 mm 450 mm 2 pieces 0.7 kg
12842 4026639128423 incl. adhesive tape 270-320 mm (10 1/2”-12 1/2”) 500 mm 500 mm 2 pieces 0.8 kg
