Intelligent, full-surface adhesive plaster/window-sealing tape, for interior and exterior use

CONTEGA SOLIDO IQ

Advantages

  • Reliable installation: the same tape for interior and exterior use thanks to its intelligent functional membrane
  • Saves time: the joint is immediately windproof and resistant to driving rain, and it can be subjected to loading
  • Reliable joints: water-resistant SOLID adhesive has extremely strong adhesion on mineral subsurfaces too
  • Extra thin: for easy folding in corner areas
  • Construction in adherence with standards: for airtight sealing in accordance with DIN 4108-7, SIA 180 and RE 2020
  • Fleece side can be plastered over: defined transition between window joints and plasterwork
  • Excellent values in hazardous substance testing, has been tested according to the ISO 16000 evaluation scheme

Areas of application

For interior use for vapour-checking and airtight joints between membranes or wood-based panels and windows, doors or mineral surfaces. For exterior use for corresponding windtight joints that are resistant to driving rain.

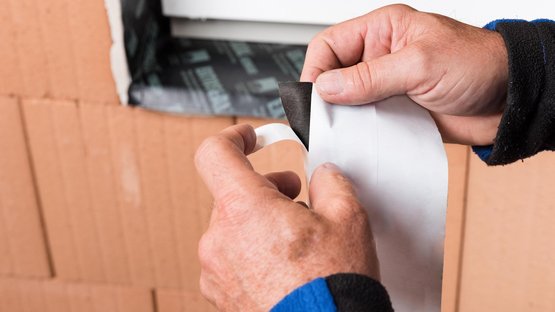

Splits on release film

Tape width Split (approx.)
80 mm (3 1/8") 20 | 60 mm (3/4" | 2 3/8")
100 mm (4") 20 | 40 | 40 mm (3/4" | 1 5/8" | 1 5/8")
150 mm (5 7/8") 20 | 70 | 60 mm (3/4" | 2 3/4" | 2 3/8")
200 mm (7 7/8") 20 | 100 | 80 mm (3/4" | 4" | 3 1/8")
250 mm (9 7/8") 20 | 110 | 120 mm (3/4" | 4" 3/8" | 4 3/4")
300 mm (11 3/4") 20 | 140 | 140 mm (3/4" | 5 1/2" | 5 1/2")

Installation instructions

Installation video: Before the window is installed

Substrate

Clean subsurfaces before sticking. Uneven mineral subsurfaces may need to be levelled with a smooth finish. Adhesion to frozen surfaces is not possible. There must be no water-repellent substances (e.g. grease or silicone) on surfaces where adhesives are to be applied. The width of the adhesive tape that is to be plastered over should generally not exceed 60 mm (2 3/8") or 50% of the soffit area. Detailed recommendations can be obtained from the relevant plaster producer. Subsurfaces must be sufficiently dry and stable.

Permanent adhesion is achieved on all pro clima interior and exterior membranes, other vapour-check and airtight membranes (e.g. those made of PE, PA, PP and aluminium) as well as other roof and breather (WRB) membranes (e.g. those made of PP and PET).
Adhesion can be carried out on planed and painted wood, hard plastics, hard wood-based panels (chipboard, OSB and plywood panels), metal (e.g. pipes, windows etc.), rigid foam insulation materials that can be plastered over, and on mineral subsurfaces such as concrete and masonry.

The best results in terms of structural stability are achieved on high-quality subsurfaces. It is your responsibility to check the suitability of the subsurface; adhesion tests are recommended in certain cases. Pre-treatment with TESCON PRIMER is recommended in the case of subsurfaces with insufficient stability.

General conditions

The bonds should not be subjected to tensile strain.

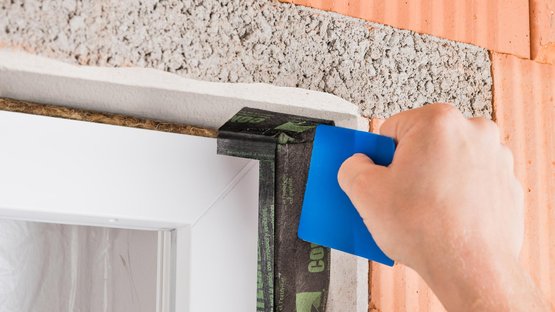

Rub the adhesive tapes firmly to secure the adhesive bonds. Ensure that there is sufficient resistance pressure. Windproof, airtight or rainproof sealing can only be achieved if this sealing tape is installed without folds, creases or joints. Ventilate continuously and systematically to prevent build-up of excessive humidity; use a dryer if necessary.
When plastering, please observe the recommendations of the plaster manufacturer for non-absorbent subsurfaces. A bonding course may be necessary.



Downloads

relating to our window-sealing products
