CONTEGA SOLIDO SL-D
Full-surface adhesive plaster/window-sealing tape with an additional adhesive zone, for interior use
Advantages
- Saves time: the joint is immediately airtight and can be subjected to loading
- Easy to work with thanks to the additional adhesive zone on the fleece side
- Can be plastered over directly: defined transition between window and/or vapour check and plasterwork
- Reliable joints: water-resistant SOLID adhesive has extremely strong adhesion on mineral subsurfaces too
- Independently confirmed suitability: tests in accordance with MO-01/1 passed at IFT in Rosenheim, Germany
- Construction in adherence with standards: for airtight sealing in accordance with DIN 4108-7, SIA 180 and RE 2020
- Excellent values in hazardous substance testing, has been tested according to the ISO 16000 evaluation scheme
Areas of application
For interior airtight and vapour-checking joints between membranes or wood-based panels and windows, doors and mineral surfaces. The adhesive zone on the fleece side allows for easier adhesion to windows and doors if applied before they are installed. The taped joint is immediately airtight and can be subjected to loading. The fleece can simply be plastered over in accordance with the installation instructions.
Splits on release film
| Tape width | Split (approx.) |
|---|---|
| 80 mm (3 1/8") | 20 | 60 mm (7/8" | 2 3/8") |
| 100 mm (4") | 20 | 40 | 40 mm (7/8" | 1 5/8" | 1 5/8") |
| 150 mm (5 7/8") | 20 | 70 | 60 mm (3/4" | 2 3/4" | 2 3/8") |
| 200 mm (7 7/8") | 20 | 100 | 80 mm (3/4" | 4" | 3 1/8") |
Installation instructions

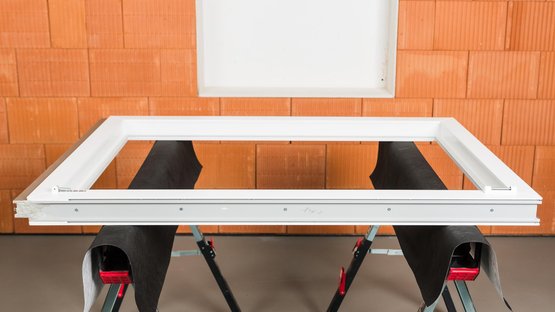

Installation steps: 1. Before the window is installed
Installation steps: 2. Window already installed
Substrate
Clean subsurfaces before sticking. Uneven mineral subsurfaces may need to be levelled with a smooth finish. Adhesion to frozen surfaces is not possible. There must be no water-repellent substances (e.g. grease or silicone) on surfaces where adhesives are to be applied. The width of the adhesive tape that is to be plastered over should generally not exceed 60 mm (2 3/8") or 50% of the soffit area. Detailed recommendations can be obtained from the relevant plaster producer. Subsurfaces must be sufficiently dry and stable.
Permanent adhesion is achieved on all pro clima interior membranes and on other vapour check and airtight membranes (e.g. those made of PE, PA, PP and aluminium).
Adhesion can be carried out on planed and painted wood, hard plastics, hard wood-based panels (chipboard, OSB and plywood panels), metal (e.g. pipes, windows etc.), rigid foam insulation materials that can be plastered over, and on mineral subsurfaces such as concrete and masonry.
The best results in terms of structural stability are achieved on high-quality subsurfaces. It is your responsibility to check the suitability of the subsurface; adhesion tests are recommended in certain cases. Pre-treatment with TESCON PRIMER is recommended in the case of subsurfaces with insufficient stability.
General conditions
The bonds should not be subjected to tensile strain.
Rub the adhesive tapes firmly to secure the adhesive bonds. Ensure that there is sufficient resistance pressure. Airtight seals can only be achieved if the sealing tape is installed free of folds and breaks. Ventilate continuously and systematically to prevent build-up of excessive humidity; use a dryer if necessary.
When plastering, please observe the recommendations of the plaster manufacturer for non-absorbent subsurfaces. A bonding course may be necessary.
