CONTEGA SOLIDO EXO-D
Full-surface adhesive plaster/window-sealing tape with an additional adhesive zone, for exterior use
Advantages
- Saves time: the joint is immediately resistant to driving rain and can be subjected to loading
- Easy to work with thanks to the additional adhesive zone on the fleece side
- Can be plastered over directly: defined transition between window and/or wind sealing and plasterwork
- Reliable joints: water-resistant SOLID adhesive has extremely strong adhesion on mineral subsurfaces too
- Independently confirmed suitability: tests in accordance with MO-01/1 passed at IFT in Rosenheim, Germany
Areas of application
For exterior windtight joints that are resistant to driving rain between membranes or wood-based panels and windows, doors and mineral surfaces. The adhesive zone on the fleece side allows for easier adhesion to windows and doors if applied before they are installed. The taped joint is immediately windproof and can be subjected to loading. The fleece can simply be plastered over in accordance with the installation instructions.
Splits on release film
| Tape width | Split (approx.) |
|---|---|
| 80 mm (3 1/8”) | 20 | 60 mm (3/4” | 2 3/8”) |
| 100 mm (4”) | 20 | 40 | 40 mm (3/4” | 1 5/8” | 1 5/8”) |
Installation instructions
Sub-sill on timber projects
Sub-sill on masonry and concrete projects

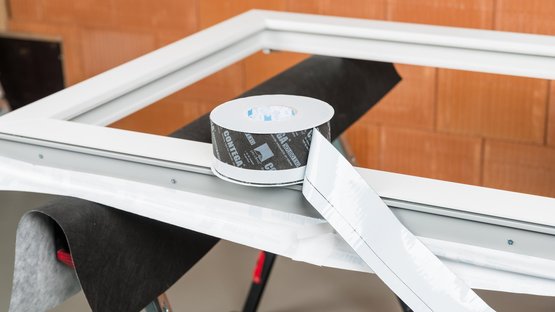

Installation steps for window-sealing
General conditions
The bonds should not be subjected to tensile strain.
Rub the adhesive tapes firmly to secure the adhesive bonds. Ensure that there is sufficient resistance pressure.
Seals that are windproof and resistant to driving rain can only be achieved if the sealing tape is installed free of folds and breaks.
When plastering, please observe the recommendations of the plaster manufacturer for non-absorbent subsurfaces. A bonding course may be necessary.
Substrate
Clean subsurfaces before sticking. Uneven mineral subsurfaces may need to be levelled with a smooth plaster finish. Adhesion to frozen surfaces is not possible. There must be no water-repellent substances (e.g. grease or silicone) on surfaces where adhesives are to be applied.
Observe the recommendations for plastering over adhesive tapes that are specified by the producer of the plaster. In most cases, it is recommended that the width of adhesive tape that is to be plastered over should not exceed 60 mm (2 3/8”) or 50% of the reveal area. Subsurfaces must be sufficiently dry and stable.
Permanent adhesion is achieved on all pro clima exterior membranes and on other underlay and breather (WRB) membranes (e.g. those made of PP and PET). Tapes can be applied to planed or painted wood, hard plastics, hard wood-based panels (chipboard, OSB and plywood panels). For sealing joints on masonry or concrete or on rough substrates, use ORCON F.
The best results in terms of structural stability are achieved on high-quality subsurfaces. It is your responsibility to check the suitability of the subsurface; adhesion tests may be necessary in certain cases. Pre-treatment with TESCON PRIMER is recommended in the case of subsurfaces with insufficient stability.
