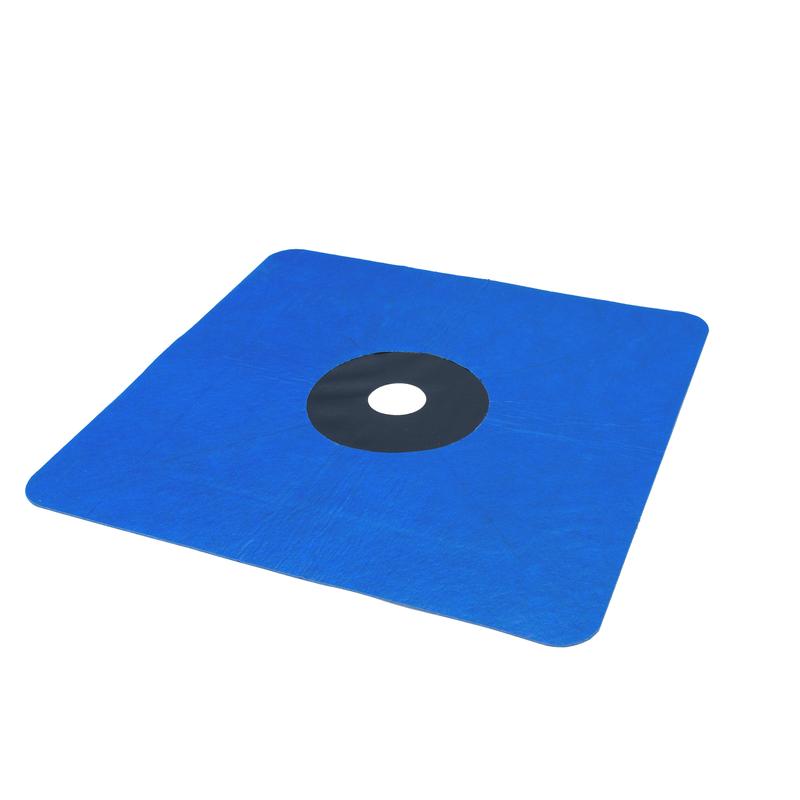

Homogeneously weldable pipe grommet for roof pitches between 3° and 50° (0.6:12 - 14:12)

WELDANO ROFLEX PLUS

Advantages

  • Keeps building components dry: windproof, rainproof and waterproof
  • Reliable seam tightness: homogeneously weldable with a solvent welding agent or hot air
  • Easy to apply: extremely high tear-resistance and very stable
  • For sealing in the case of backed-up water, the flange can simply be extended using SOLITEX WELDANO-S 3000
  • For pipes with diameters of 90 - 125 mm

Areas of application

Homogeneously weldable pipe grommet for reliable installation of pipe feed-throughs within the SOLITEX WELDANO roof underlay system. Suitable for roof pitches between 3° and 50° (0.6:12 - 14:12). The pre-fabricated grommet can be used to execute pipe feed-throughs in an easy, quick and permanently sealed manner.
To ensure a permanent seal even in the case of backed-up water, a strip of SOLITEX WELDANO-S 3000 must be welded to the resulting flange (see installation instructions).
The shaped element can be welded to the pro clima SOLITEX WELDANO 3000 roofing underlay membrane in a waterproof manner using the WELDANO TURGA system solvent welding agent or hot air.
